The map contains the 130km DN1000 Zdzieszowice – Wrocław Gas Pipeline in Poland. The pipeline runs from Leśnica, Strzelce, Opole to Kiełczów, Długołęka, Wrocław.
Table of Descriptions
1 Product Details
2 Files Included in This Digital Map
3 Editability of Map
4 Related Upstream/Downstream Pipelines
1 Product Details
- Product Name: Map of Zdzieszowice – Wrocław Gas Pipeline
- Nazwa Produktu: Mapa Gazociąg Zdzieszowice – Wrocław
- Product Type: Vector Map
- Pipeline Length: 130km
- Country: Poland
- From: Leśnica, Strzelce, Opole
- To: Kiełczów, Długołęka, Wrocław
- No. of Gas Nodes: 3
- No. of Block Valve Stations: 6
- Coordinate Data: Not Available
- File Formats: Adobe PDF, Adobe Illustrator
- Lifetime Updates: Supported
Language: English (Some abbreviations may retain their customary forms in the local language.)
展开全文Note: This digital map is NOT a GIS map or don’t contain coordinate data.
2 Files Included in This Digital Map

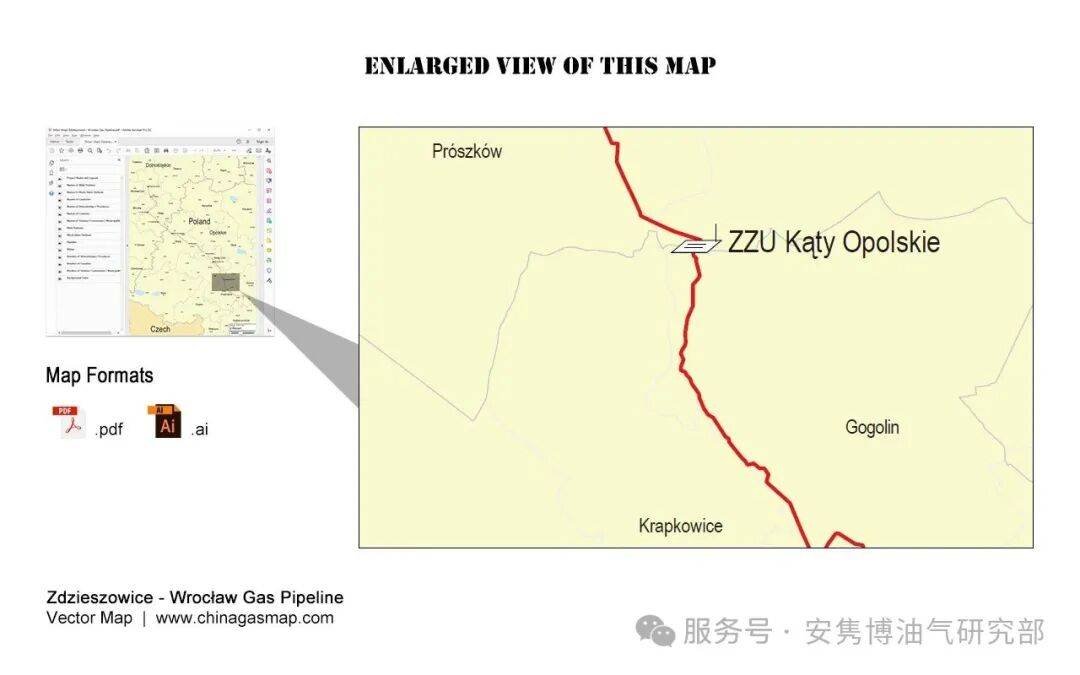

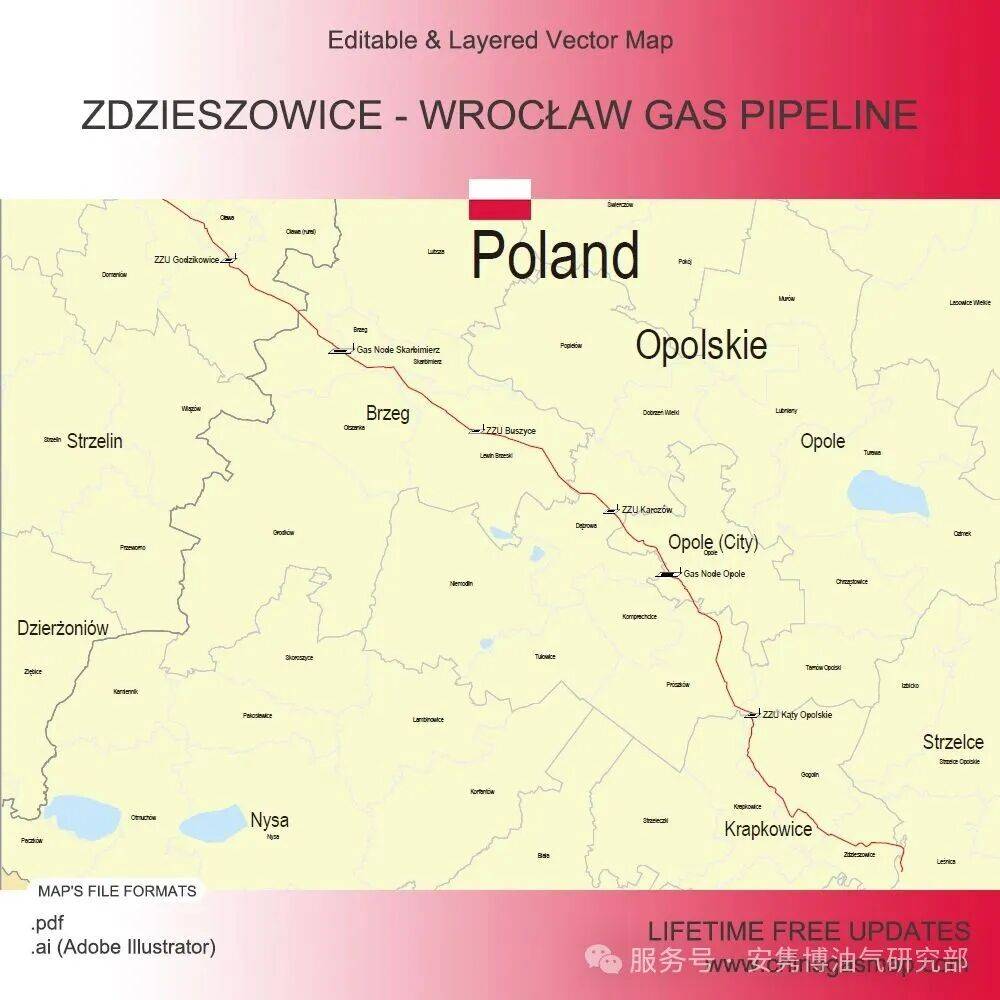

[Main Map] Zdzieszowice – Wrocław Gas Pipeline
This map includes the geographical area from the pipeline’s starting point to its end point. Its content contains the pipeline route, stations along the pipeline, and the administrative regions that the pipeline passes through.
Two file formats, .pdf and .ai (Adobe Illustrator), are included. Both of them are editable and layered. Users can show and hide a layer simply with a mouse click.
The map consists of following independent layers:
- Project Name and Legend
- Names of Main Stations
- Names of Block Valve Stations
- Names of Countries
- Names of Voivodeships / Provinces
- Names of Counties
- Names of Gminas / Communes / Municipalities
- Main Stations
- Block Valve Stations
- Pipeline
- Water
- Borders of Voivodeships / Provinces
- Borders of Counties
- Borders of Gminas / Communes / Municipalities
- Background Color
3 Editability of Map:
Based on the layered digital map (.pdf and .ai), users can perform further development and modifications, including but not limited to:
- Adjusting the position of text and modifying its attributes such as font, font size, and color;
- Adjusting the position and size of icon symbols;
- Modifying the path of oil and gas pipelines to reflect changes caused by rerouting;
- Adding new pipelines and stations;
- Changing the border color and line weight of different administrative regions;
- Modifying the map background color.
4 Related Upstream/Downstream Pipelines:
We also provide digital maps of following direct upstream/downstream pipelines.
Interconnection Pipelines (Bidirectional):
Czeszów – Kiełczów Gas Pipeline
Zdzieszowice – Kędzierzyn-Koźle Gas Pipeline
)
)
)
)
)
)
)
)
)
)
)
)
)
)
